StapleGuard - London Frame Reinforcer

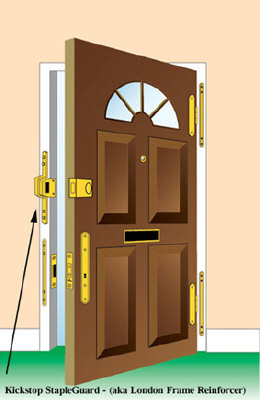

The StapleGuard is bolted together through the frame - around the rim lock staple (keep)



The StapleGuard (originally known as - London Frame Reinforcer):

This bolt through version of the London Bar has two plates.

The external plate is flat with a bevelled edge designed to resist side impact.

The internal plate has a 'D' shaped staple to fit over the rim lock staple.

Supplied with 4" long bolt fixings.







Before ordering

Very carefully check that the StapleGuard staple size that you order, is the correct size that you need to fit over the door's nightlatch or rim lock staple.

If in doubt, please read the section on London Bar

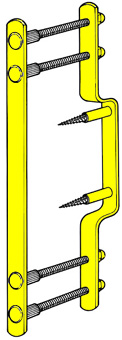

2004 Universal Staple

(30mm x 97mm)

This is a large size staple that can be slightly 'reduced' by using the two fixings





9603 Standard Staple

(30mm x 70mm)

To fit over the staple of a Yale 77 and other similar sized nightlatches





9604 Large Staple

(30mm x 97mm)

To fit over the staple of the Yale No. 1 and other similar sized rim locks





9605 Ingersoll Staple

This is a 'non-handed' StapleGuard with a 30mm x 70mm Standard staple - to fit over the left or right handed Ingersoll SC71

It will fit over the lock staple and has a small cut out section to allow the Springbolt of the lock to pass through.



!
!

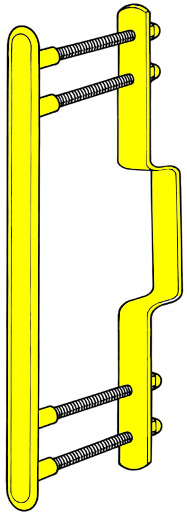

StapleGuard - Standard Staple - 9603

A four bolt StapleGuard for smaller sizes of staple

20mm wide

Bolt through version of the London Bar

To Reinforce and Strengthen Wooden Door Frame

Standard size 'D' shape staple to fit over lock staple/keep which is 30mm x 70mm - or less





9603 plate dimensions - 300mm long x 20mm wide x 7mm thick - Bevelled Edge

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

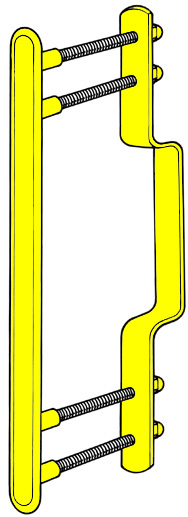

StapleGuard - Large Staple - 9604

A four bolt StapleGuard for larger sizes of lock staple

20mm wide

Bolt through version of the London Bar

To Reinforce and Strengthen Wooden Door Frame

Large size 'D' shape staple to fit over lock staple/keep  which is 30mm x 97mm - or less



9604 plate dimensions - 300mm long x 20mm wide x 7mm thick - Bevelled Edge

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

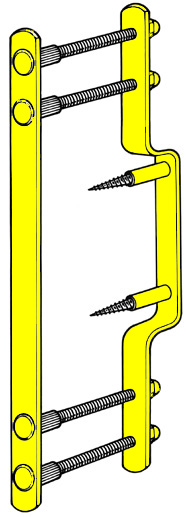

StapleGuard - Universal Staple - 2004 WH

A four bolt steel StapleGuard for most sizes of staple

20mm wide

Bolt through version of the London Bar

To Reinforce and Strengthen Wooden Door Frame

Universal size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less

The fixings allow the internal size of the staple to be 'reduced' from 97 to 70mm.  Perfect for customers who are unsure whether to purchase a Standard or Large size staple



2004 plate dimensions - 300mm long x 20mm wide x 5mm thick - Rounded Edge - White

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

StapleGuard - Ingersoll SC71 - 9605

A four bolt StapleGuard to fit over the Ingersoll SC71 rim lock.  The 9605 staple has a cut out to allow the Springbolt of the lock to pass through - not illustrated.

20mm wide

It is not 'handed' and can be fitted on the left or right side of the door frame.

Bolt through version of the 9612/9613 London Bar

To Reinforce and Strengthen Wooden Door Frame

Modified version of the Standard Staple to fit over lock staple/keep which is 30mm x 70mm - or less



9605 plate dimensions - 300mm long x 20mm wide x 7mm thick - Bevelled Edge

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information
