The AutoGuard Collapsible Parking Security Post

Round the clock security for a driveway or parking  bay.







  • Supplied with integral radial push lock or a padlock staple - (padlock not supplied).
  • Locks into an upright position and opens by collapsing down horizontally.
  • Choice of anchor bolt fixing to ground surface or concrete fixing below surface - (fixings or concrete not supplied).
  • Medium Duty posts are galvanised against corrosion and can also have an optional highly visible silver grey polyester finish.
  • Heavy Duty posts are galvanised against corrosion.
  • The 'D' shaped lifting handle can also be used for chain linking.The internal locking system uses 12mm diameter steel hinge pins.
!

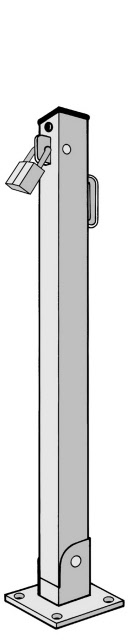

AutoGuard Collapsible - CP1

Steel Parking Security Post - MEDIUM DUTY

50mm square

with 10mm diameter padlock staple

Steel Base - four 10mm diameter fixing holes





CP1 dimensions - 750mm high x 50mm x 50mm square

This is the medium duty version of the CP3

Galvanised to BS EN ISO 1461:1999 (BS 729:1971)

 More Information

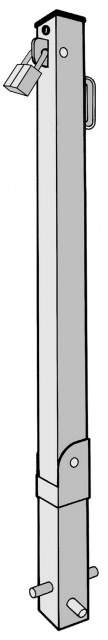

AutoGuard Collapsible - CP2



Steel Parking Security Post - MEDIUM DUTY

50mm square

with 10mm diameter padlock staple

215mm 'concrete in' Steel Base





CP2 dimensions - 750mm high x 50mm x 50mm square plus 215mm below ground

This is the medium duty version of the CP4

Galvanised to BS EN ISO 1461:1999 (BS 729:1971)

More Information

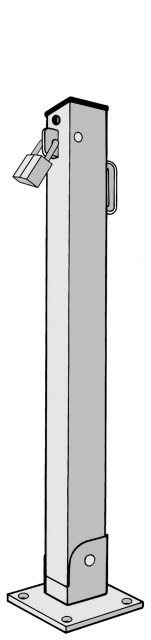

AutoGuard Collapsible - CP3



Steel Parking Security Post - HEAVY DUTY

70mm square

with 10mm diameter padlock staple

Steel Base - four 12mm diameter fixing holes





CP3 dimensions - 750mm high x 70mm x 70mm square

This is the heavy duty version of the CP1

Galvanised to BS EN ISO 1461:1999 (BS 729:1971)

More Information

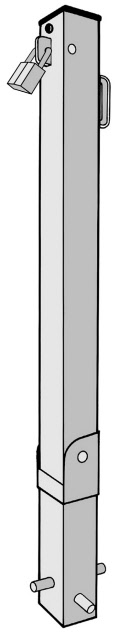

AutoGuard Collapsible - CP4



Steel Parking Security Post - HEAVY DUTY

70mm square

with 10mm diameter padlock staple

215mm 'concrete in' Steel Base





CP4 dimensions - 750mm high x 70mm x 70mm square plus 215mm below ground

This is the heavy duty version of the CP2

Galvanised to BS EN ISO 1461:1999 (BS 729:1971)

More Information

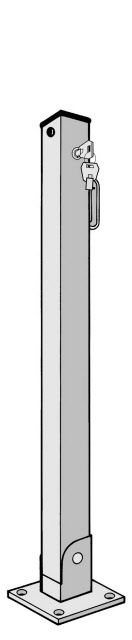

AutoGuard Collapsible - CP11

Steel Parking Security Post - MEDIUM DUTY

50mm square

with Radial Pin Tumbler Pushlock & 2 Keys

Steel Base - four 10mm diameter fixing holes



CP11 dimensions - 750mm x 50mm x 50mm square

This is the medium duty version of the CP13

Galvanised to BS EN ISO 1461:1999 (BS 729:1971)

More Information

AutoGuard Collapsible - CP12

Steel Parking Security Post - MEDIUM DUTY

50mm square

with Radial Pin Tumbler Pushlock & 2 Keys

215mm 'concrete in' Steel Base





CP12 dimensions - 750mm high x 50mm x 50mm square plus 215mm below ground

This is the medium duty version of the CP14

Galvanised to BS EN ISO 1461:1999 (BS 729:1971)

 More Information

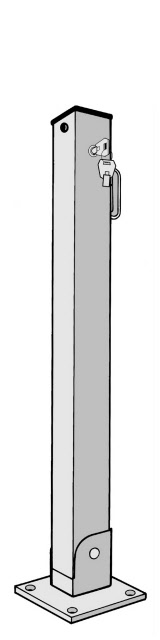

AutoGuard Collapsible - CP13

Steel Parking Security Post - HEAVY DUTY

70mm square

with Radial Pin Tumbler Pushlock & 2 Keys

Steel Base - four 12mm diameter fixing holes





CP13 dimensions - 750mm high x 70mm x 70mm square

This is the heavy duty version of the CP11

Galvanised to BS EN ISO 1461:1999 (BS 729:1971)

More Information

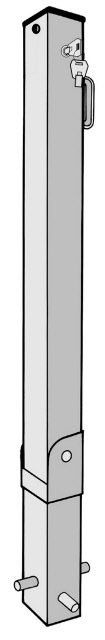

AutoGuard Collapsible - CP14

Steel Parking Security Post - HEAVY DUTY

70mm square

with Radial Pin Tumbler Pushlock & 2 Keys

 215mm 'concrete in' Steel Base





CP14 dimensions - 750mm high x 70mm x 70mm square plus 215mm below ground

This is the heavy duty version of the CP12

Galvanised to BS EN ISO 1461:1999 (BS 729:1971)

More Information

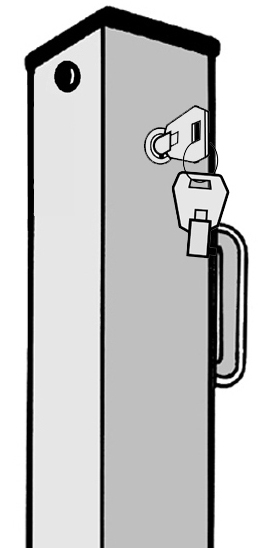

Pushlock - PP

Lowe & Fletcher Radial Pin Tumbler Lock

& 2 Keys (random numbers) - Chrome







Multiple orders for Pushlocks are accepted.  Specify KA or KD.

Please contact us by telephone if locks are required Keyed Alike to existing locks.

Delivery can be via National Courier @ £9.50 per consignment

or

Via Royal Mail -  standard post in a 'Jiffy' bag - FROM £3.00

If you choose the 'Jiffy' bag option we will manually debit your card with the relevant standard Royal Mail postage costs.

  The system will offer you the 'FROM £3.00 ' price and this will be amended by us manually if the order is too large/heavy.

We cannot obtain a proof of postage for this service and, in requesting this service, our customers agree to accept total responsibility for any missing, lost or damaged 'Jiffy' bags and goods.

Key - PPKEY

Lowe & Fletcher Radial Key - Chrome Finish







Extra Keys can be ordered with Parking Post

Subsequent orders for Spare Keys are accepted with key number and proof of ownership.  Please telephone us to discuss this prior to ordering.

Delivery can be via National Courier @ £9.50 per consignment

or

Via Royal Mail -  standard post in a 'Jiffy' bag - FROM £3.00

If you choose the 'Jiffy' bag option we will manually debit your card with the relevant standard Royal Mail postage costs.

  The system will offer you the 'FROM £3.00 ' price and this will be amended by us manually if the order is too large/heavy.

We cannot obtain a proof of postage for this service and, in requesting this service, our customers agree to accept total responsibility for any missing, lost or damaged 'Jiffy' bags and goods.
