The DeadlockGuard is available in five sizes, three keyways, five polyester powder coated architectural finishes and three polished and plated finishes.
All Kickstop DeadlockGuards clamp together, around the mortice deadlock, and offer superior protection and resistance against kick-in attacks, forced entry and burglary.

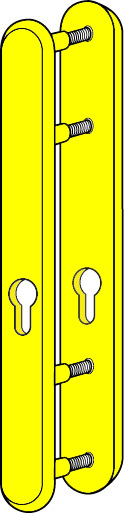

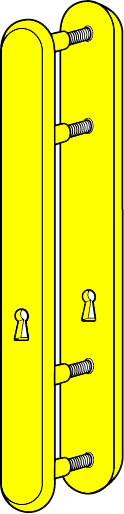

The original DeadlockGuard is the 9601
300 x 35 x 7mm - available with UK, Euro and Oval keyway
300 x 29 x 7mm - available with UK, Euro and Oval keyway
The 9601 is available in two widths and has four bolt through security fixings. Because of its popularity as a high security product, the wider version, in the more common UK and Euro keyways, is available in more finishes. The slightly narrower version is perfect where a large door stop and draught excluder is fitted to a door with a 2 1/2" deadlock.
Ideally, a cylinder rim lock should not be fitted too close to a mortice lock. As a rule, the mortice lock would be fitted at about a third up from the bottom of the door and the rim lock at about a third down from the top of the door. Occasionally, these locks are fitted so close together on a door that the longer 9601 DeadlockGuard will not fit. For any customer encountering this problem, we recommend the shorter 9600 or 2000 DeadlockGuard. Always check - before ordering.

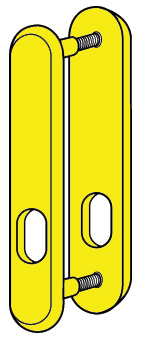

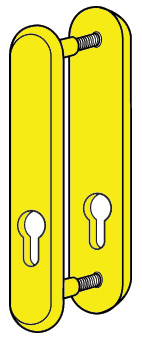

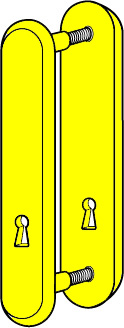

The Kickstop 9600 DeadlockGuard is the shortest of our LockGuards
188 x 35 x 7mm - available with UK, Euro and Oval keyway
It has two bolt through security fixings, it's the most popular DeadlockGuard and is available in more finishes.

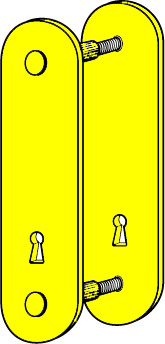

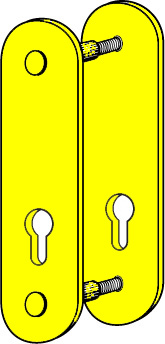

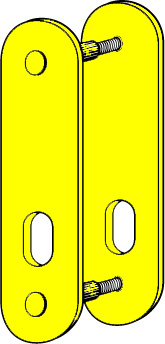

The wider, flatter Kickstop 2000 DeadlockGuard is 3mm thick
203 x 50 x 3mm - available with UK, Euro and Oval keyway
This has two bolt through security fixings and reversible plates that can very easily be removed, reversed and refitted at a future date to conceal any accidental scratches or other slight damage to the original finish.
The Kickstop 2300 DeadlockGuard is the most recent version
230 x 50 x 5mm - available with UK or Euro keyway
White and Satin Silver polyester powder coated finish as well as Brasslux and Bright Chrome Plated finish
This is a very substantial LockGuard with two bolt through security fixings
|

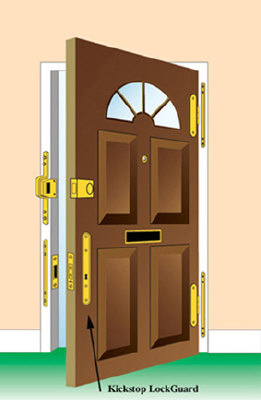

Fitting a mortice deadlock, or sashlock, involves removing wood from the door This leaves a very weakened area around the mortice lock The Kickstop Door Reinforcer will help remedy this problem
The Kickstop LockGuards The DeadlockGuard is for use with a mortice deadlock The SashlockGuard is for use with a mortice sashlock |
Before ordering
*Very carefully check that you are ordering a LockGuard with the correct keyway for your lock.
|
|
|
|
|
UK DeadlockGuards
for use with a 'traditional' style mortice deadlock |
EU DeadlockGuards
for use with a EURO Profile cylinder mortice deadlock |
OV DeadlockGuards
for use with an Oval Profile cylinder mortice deadlock |
Mortice deadlocks and cylinders shown - for illustration purposes only
|
Euro Cylinder |
Oval Cylinder |
|
|
|
