Anti-Thrust Devices

Anti-thrust plate is Locksmith terminology for a flat device that is fitted to the external face of a door, overlapping the edge and covering the gap between the door and frame to prevent someone using an implement to tamper with the latch or bolt.

Because it overlaps the edge of the door, it can only be fitted to a pair of doors or a single door that opens outward.

For the same reason, if it is fitted to double doors that open inward, it cannot be fitted to the door that opens first.

Kickstop supplies high security Anti-Thrust Plates and very high security Anti-ThrustGuards and a complete list and description is provided below.

!

Before ordering

*Very carefully check the type of keyway you require

Traditional UK (UK) - Euro profile cylinder (EU) - Oval cylinder (OV)



NB: Choose the device/plate with the correct shape of keyway





Anti-Thrust Devices to provide anti-jemmy protection for mortice deadlocks and latches

AT1UK , 2021UK, AT1EU, 2021EU, AT1OV, 2021OV







UK

(for traditional lever/detainer mortice deadlock)



EU

(for Euro Profile cylinder mortice deadlock)

OV

(for Oval Profile cylinder mortice deadlock)

Mortice deadlocks shown above - for illustration purposes only



Euro Cylinder

 Oval Cylinder





Mortice deadlock cylinders shown above  - for illustration purposes only



AT1UK

203 x 100 x 3mm

Reversible - NOT Handed

(Countersunk Both Sides)

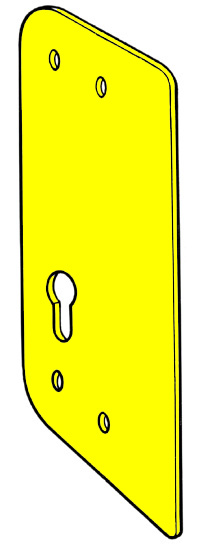

 AT1EU

203 x 100 x 3mm

Reversible - NOT Handed

(Countersunk Both Sides)

AT1OV

203 x 100 x 3mm

Reversible - NOT Handed

(Countersunk Both Sides)

2021UK

203 x 100/50 x 3mm

Reversible - NOT Handed

(Finished Both Sides)

2021EU

203 x 100/50 x 3mm

Reversible - NOT Handed

(Finished Both Sides)

2021OV

203 x 100/50 x 3mm

Reversible - NOT Handed

(Finished Both Sides)



Anti-Thrust Plate to provide anti-jemmy protection for Euro cylinder rimlocks

AT3EU



AT3EU

230 x 100 x 3mm

Reversible - NOT Handed

(Countersunk Both Sides)



Anti-Thrust Devices to provide anti-jemmy protection for mortice sashlocks

AT5, 2025

With 'Universal' elongated hole for use with UK Keyway, Euro and Oval profile cylinder

For use with customers own lever lock furniture

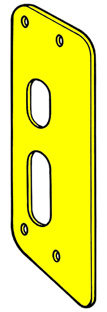

AT5

240 x 100 x 3mm

The top elongated hole is for the spindle

The lower 'universal' hole is for the UK keyway, Euro cylinder or Oval cylinder

Reversible - NOT Handed

(Countersunk Both Sides)

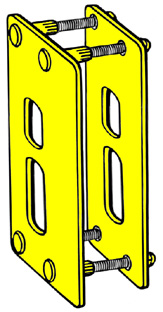

2025

240 x 100/75 x 3mm

The top elongated hole is for the spindle

The lower 'universal' hole is for the UK keyway, Euro cylinder or Oval cylinder

Reversible - NOT Handed

(Finished Both Sides)



Anti-Thrust Device to provide anti-jemmy protection for cylinder rimlocks

AT6



AT6

203 x 120 x 3mm

Hole for cylinder is 47.5mm in diameter

Reversible - NOT Handed



Anti-Thrust devices to provide anti jemmy protection for single or double doors - with no keyway

AT1, AT2, AT4



AT1

203 x 100 x 3mm

Reversible - NOT Handed

AT2

480 x 80 x 3mm - 5 screws

Reversible - NOT Handed

AT4

1980 x 80 x 3mm - 19 screws

Reversible - NOT Handed



BUY Anti-Thrust Plate - Screw on plate (Sentinel security screws supplied)



BUY Anti-ThrustGuard - Bolt through plates (security fixings supplied)
